Contrast side panel shorts

Lightweight woven shorts with contrast side panels, hidden inside pockets and a branded swing tag. The pack covers construction, waistband, pocket bag sizes, labelling and a 17-point size chart from XS to XXXL.

Contrast side panel shorts, model sketch: full tech pack page with the Testa Atelier header: front, back and side technical flats of the shorts.

Page 1 of 14: Model sketch

Type
Tech pack, womenswear
Style
Contrast side panel shorts
Line
Active, women
Fit
Regular
Fabric
Woven lightweight, 97% nylon, 3% elastane, 175 gsm
Colour
19‑1620 TCX, 12‑0304 TCX, 14‑6408 TCX, 15‑1217 TCX
Sizes
XS to XXXL, sample S

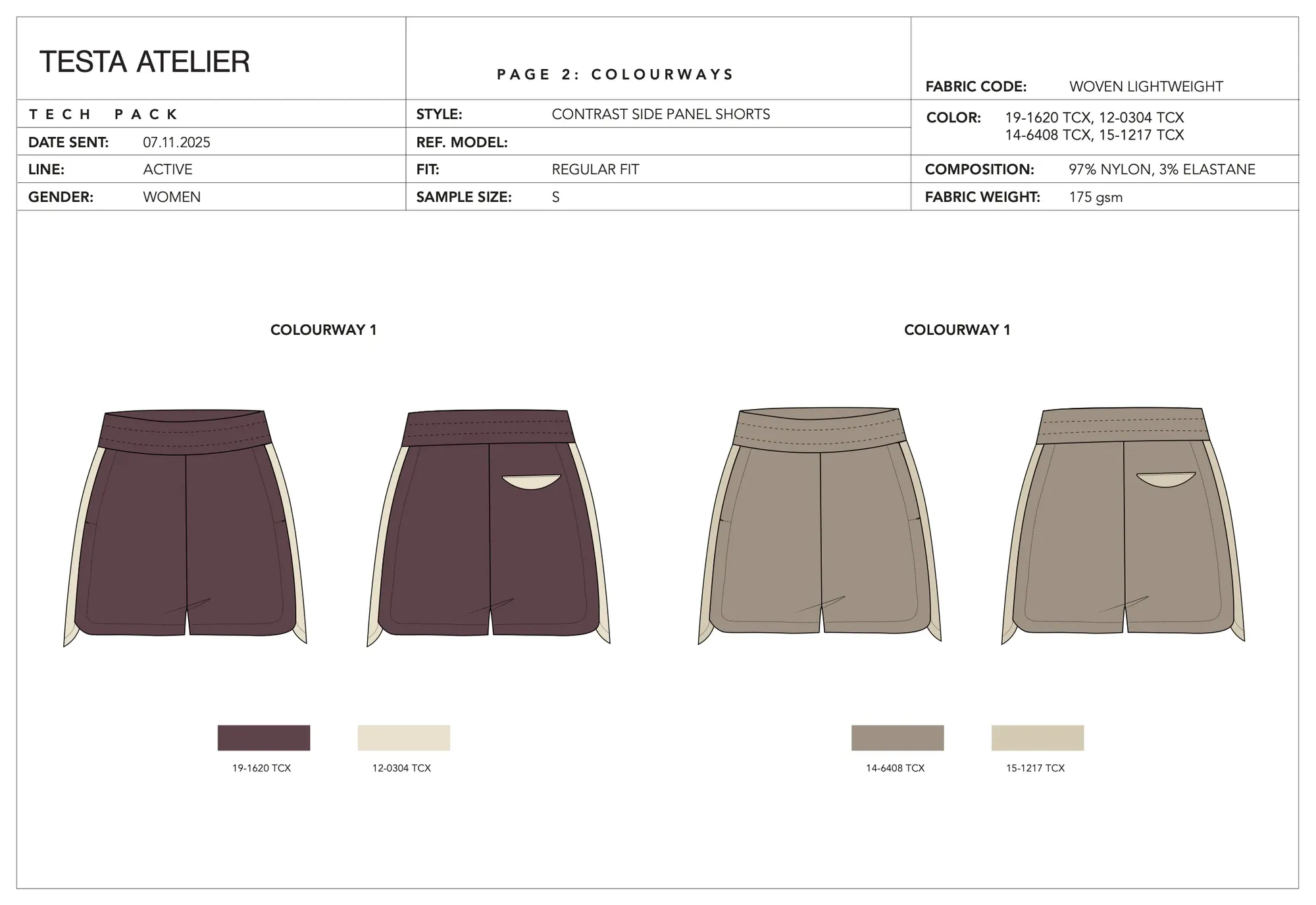

  1. Contrast side panel shorts, colourways: two colourways shown front and back with Pantone TCX references.Open full size: Colourways
    Page 2 of 14Colourways

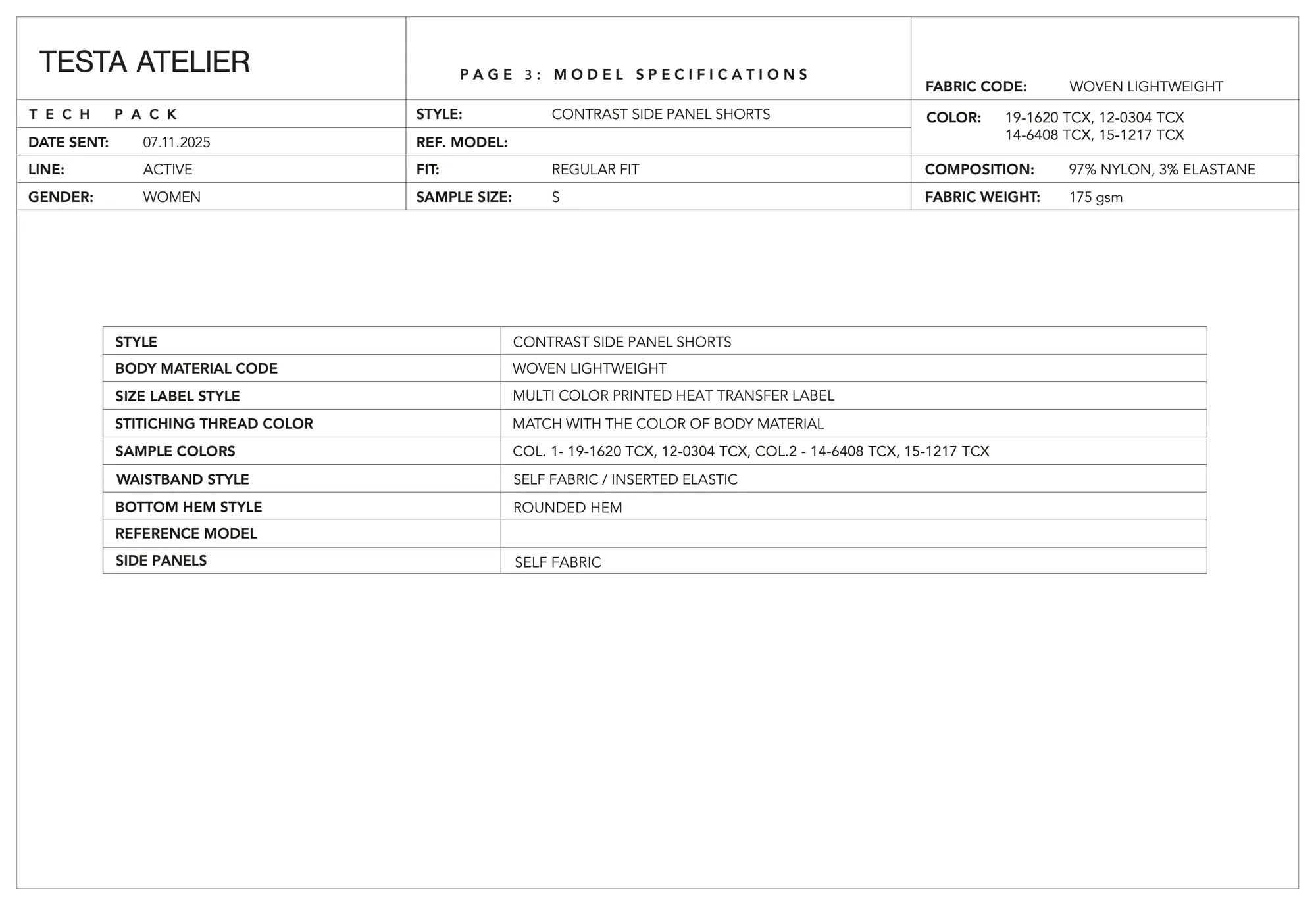

  2. Contrast side panel shorts, model specifications: specification table: body fabric, size label, stitching thread, Pantone sample colours, waistband, hem and side panels.Open full size: Model specifications
    Page 3 of 14Model specifications

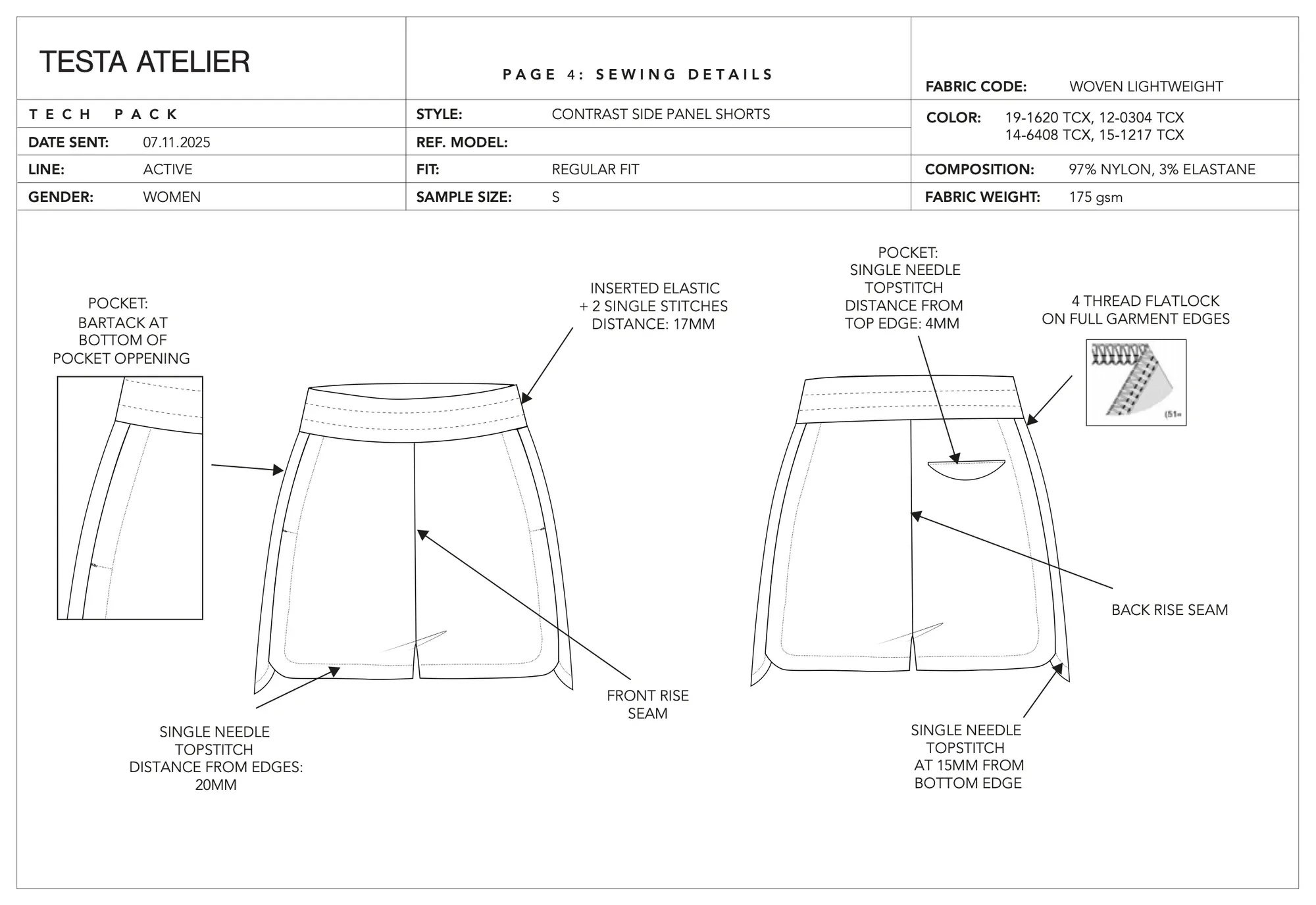

  3. Contrast side panel shorts, sewing details: flats annotated with inserted elastic, pocket bartacks, flatlock seams and topstitch distances.Open full size: Sewing details
    Page 4 of 14Sewing details

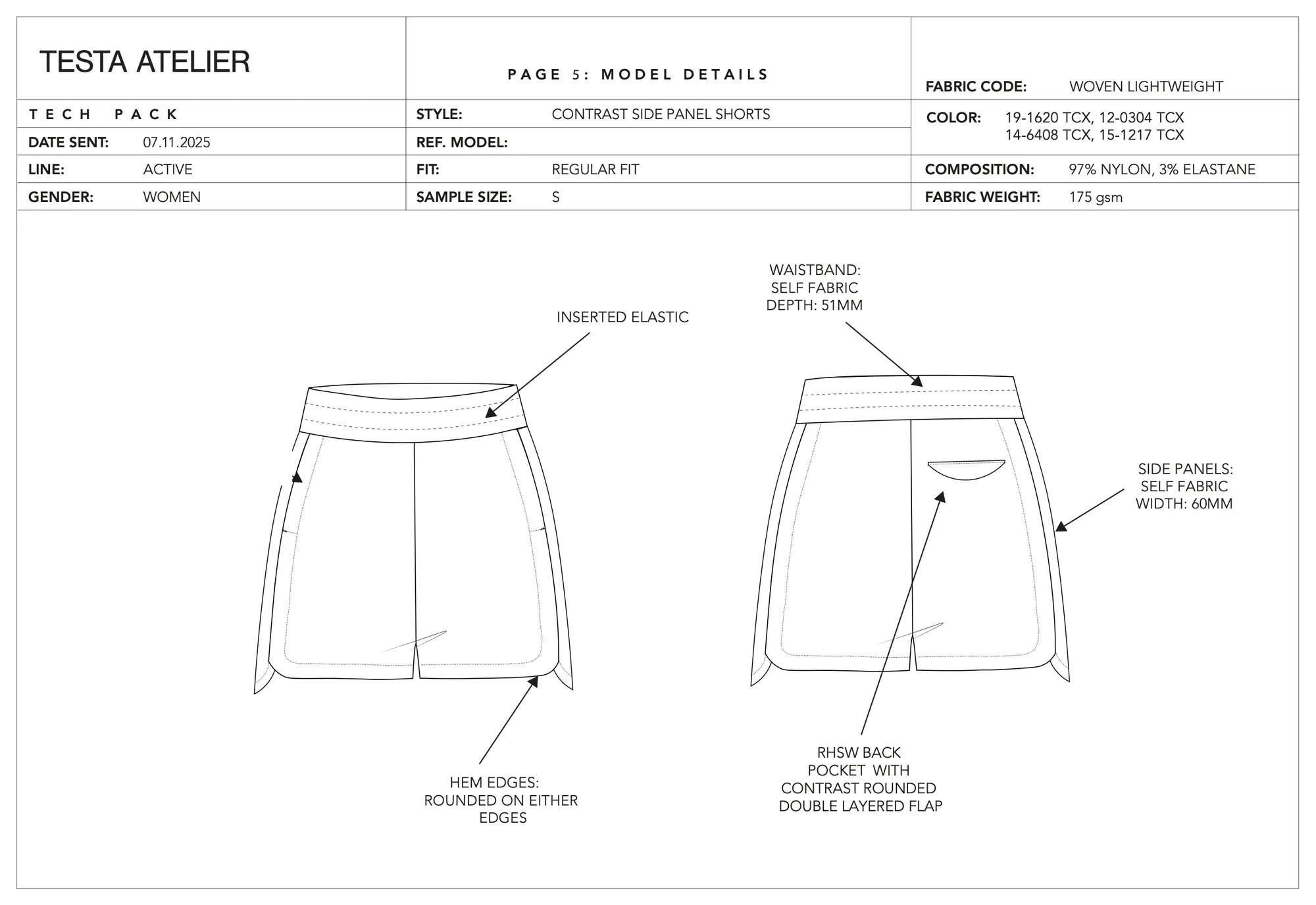

  4. Contrast side panel shorts, model details: front and back flats annotated with waistband, side panels, rounded hems and the double-layered back pocket flap.Open full size: Model details
    Page 5 of 14Model details

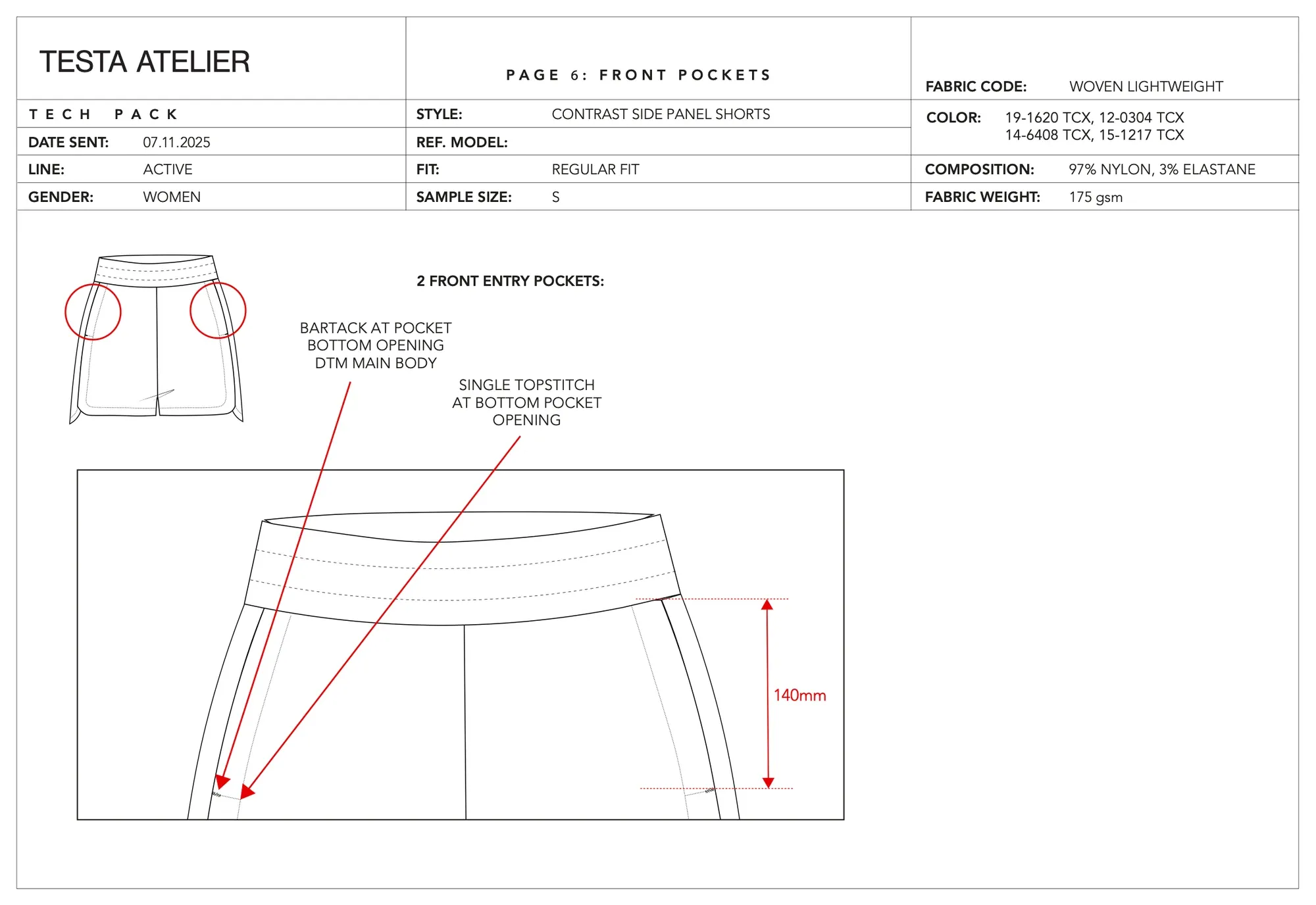

  5. Contrast side panel shorts, front pockets: front entry pockets with bartack and topstitch callouts and a 140 mm pocket opening.Open full size: Front pockets
    Page 6 of 14Front pockets

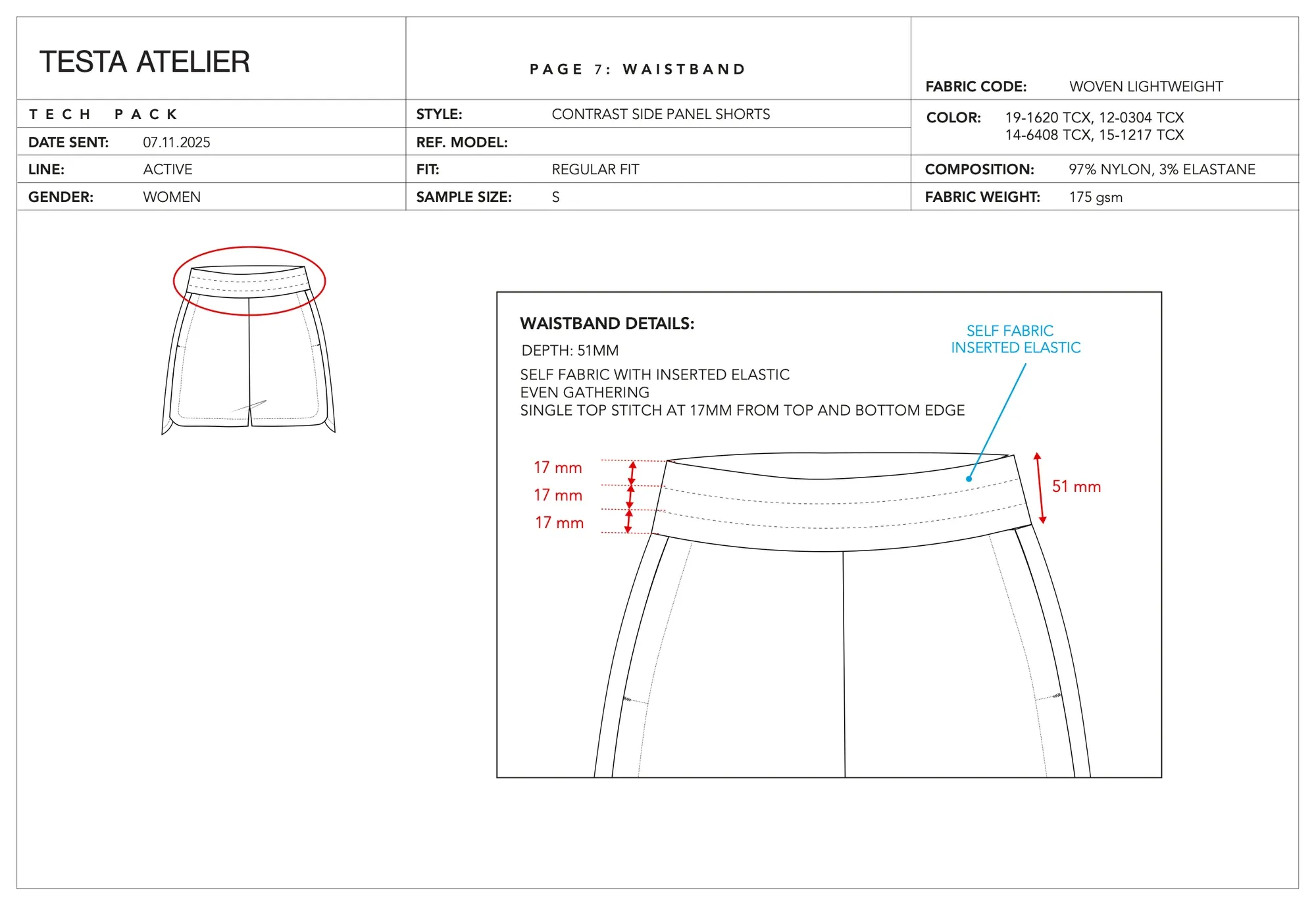

  6. Contrast side panel shorts, waistband: waistband details: 51 mm self-fabric waistband with inserted elastic and topstitching at 17 mm.Open full size: Waistband
    Page 7 of 14Waistband

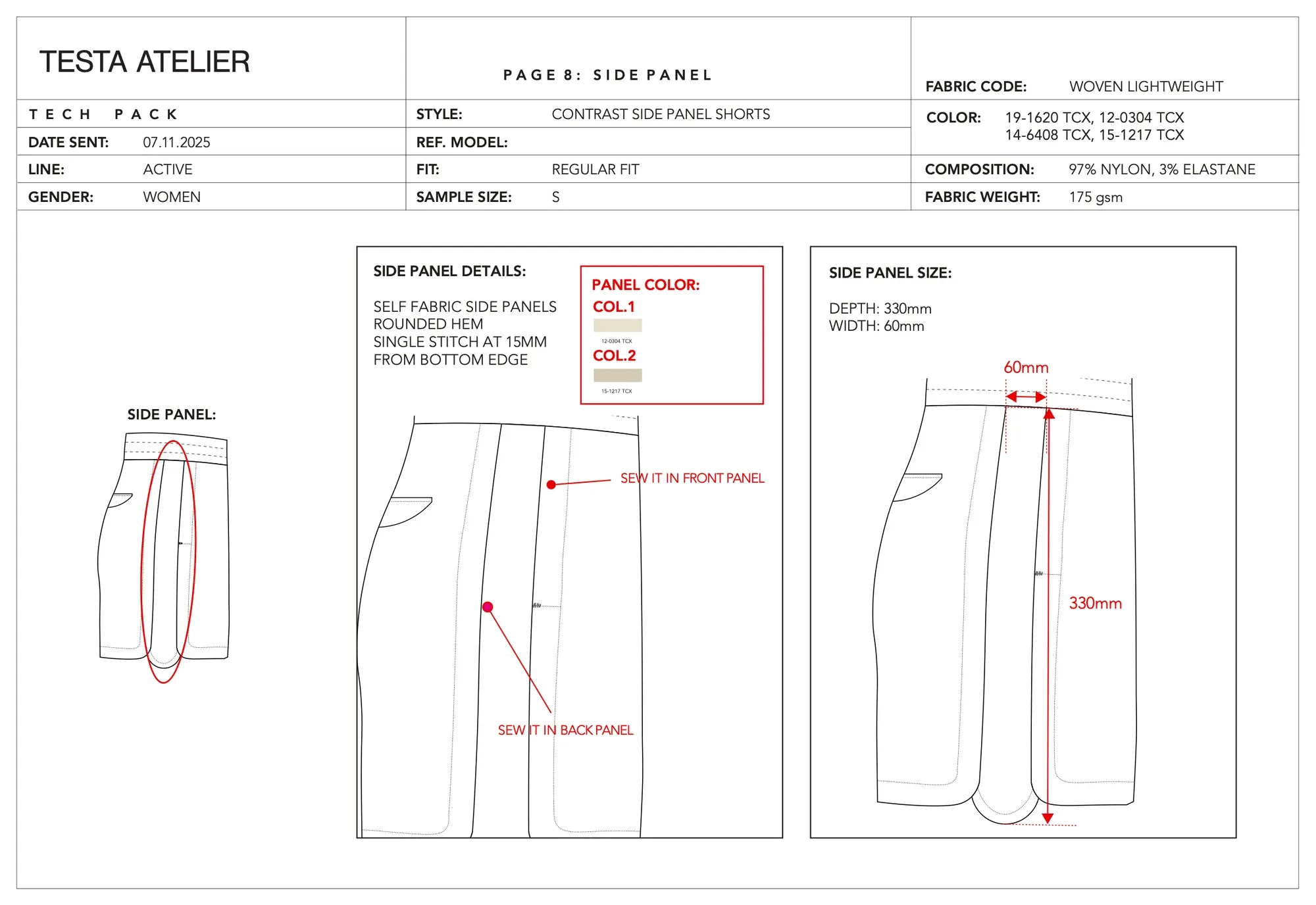

  7. Contrast side panel shorts, side panel: side panel construction and size: 330 mm deep and 60 mm wide, sewn into front and back panels.Open full size: Side panel
    Page 8 of 14Side panel

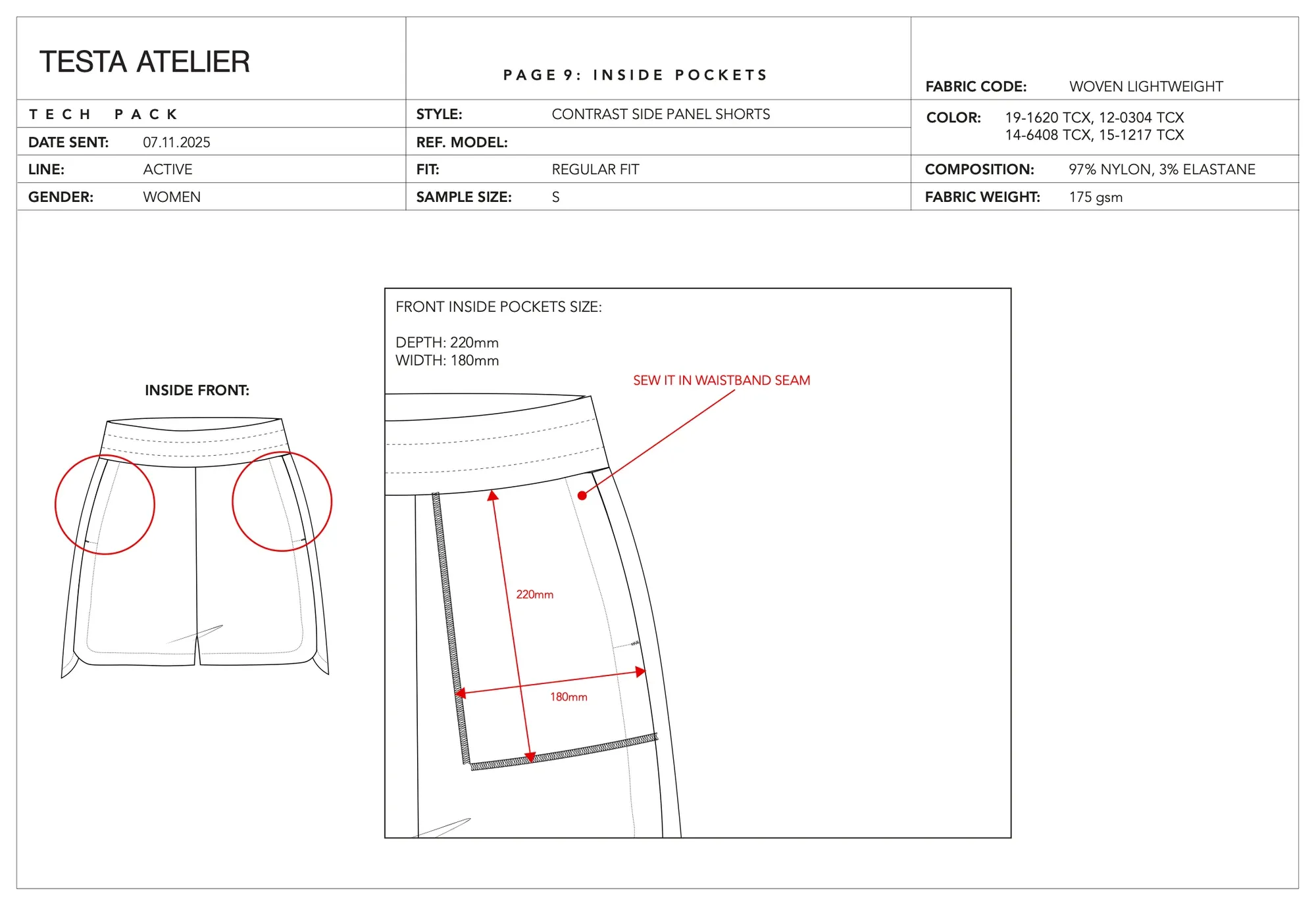

  8. Contrast side panel shorts, inside front pockets: inside front pocket bags, 220 by 180 mm, sewn into the waistband seam.Open full size: Inside front pockets
    Page 9 of 14Inside front pockets

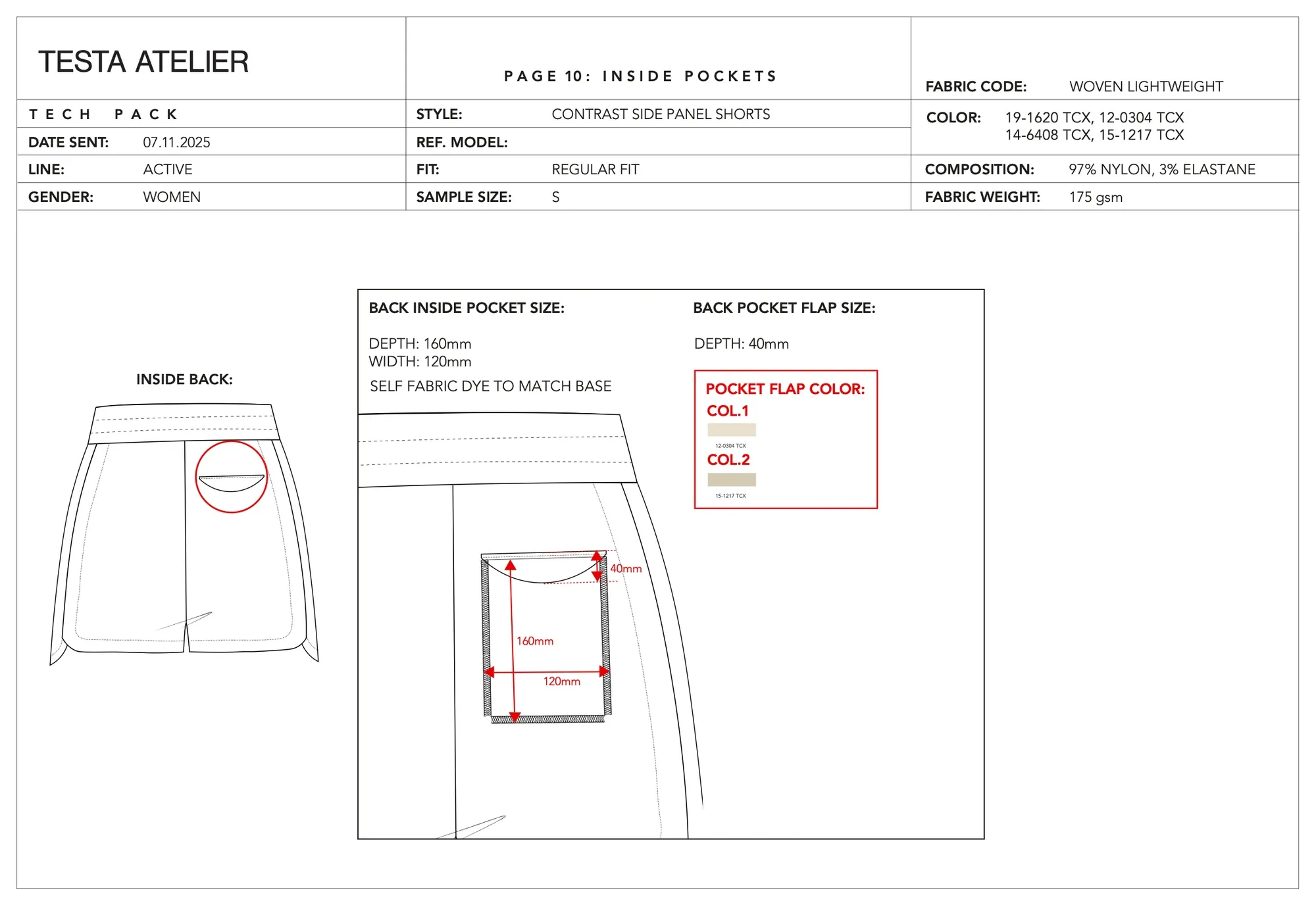

  9. Contrast side panel shorts, inside back pocket: back inside pocket and flap sizes with contrast flap colours for each colourway.Open full size: Inside back pocket
    Page 10 of 14Inside back pocket

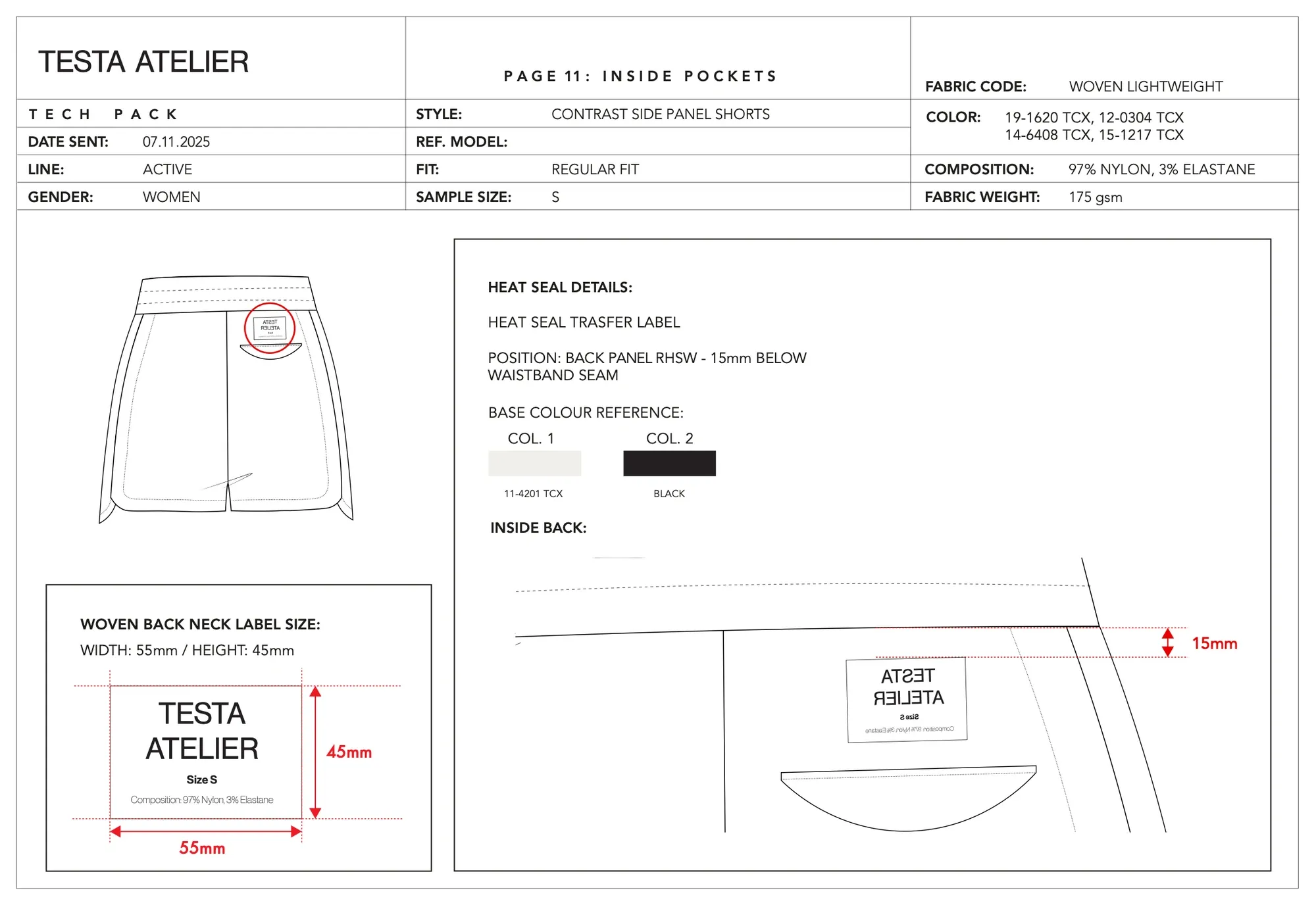

  10. Contrast side panel shorts, labels: heat seal label position and colours, and the 55 by 45 mm Testa Atelier woven back neck label.Open full size: Labels
    Page 11 of 14Labels

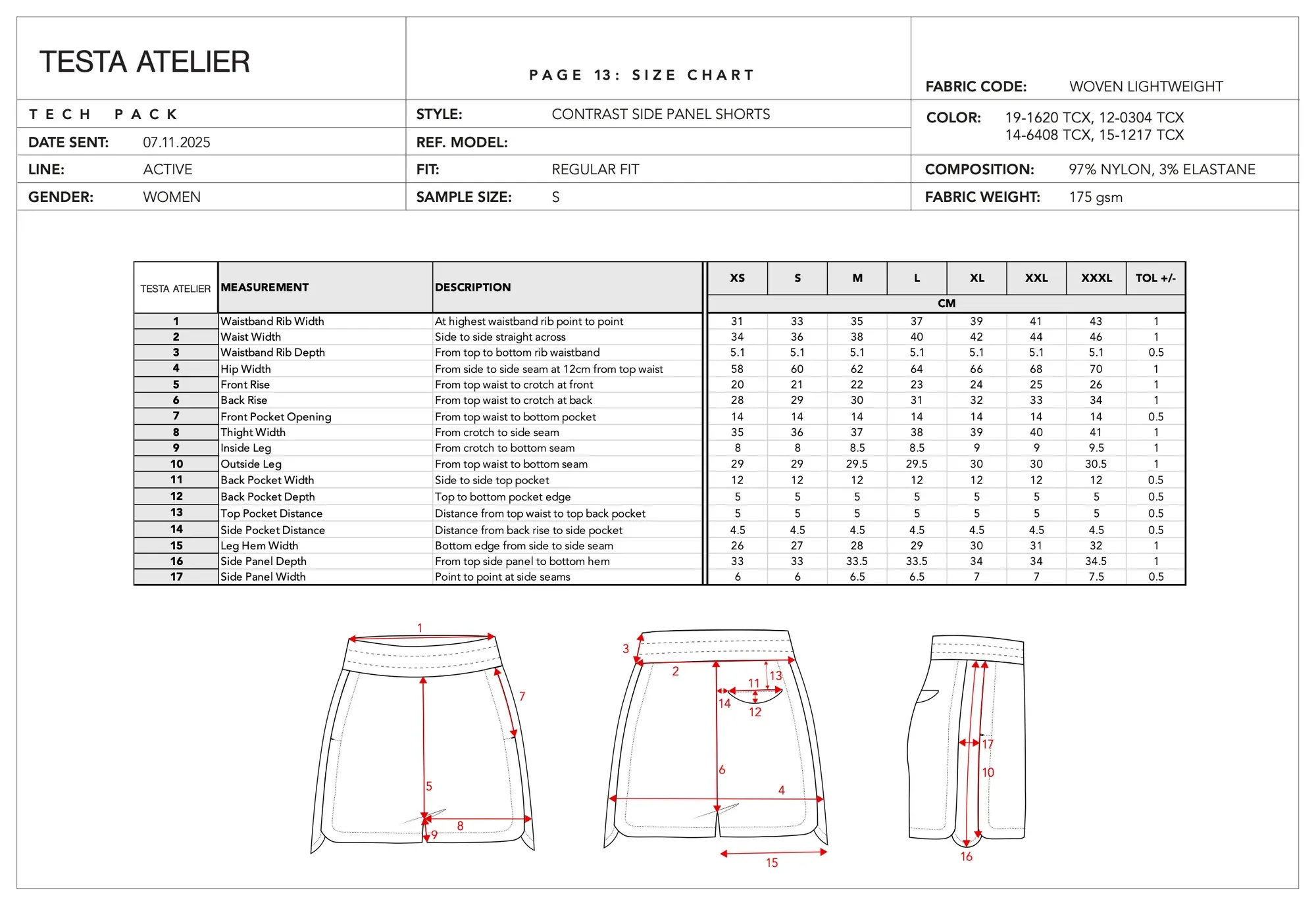

  11. Contrast side panel shorts, size chart: size chart from XS to XXXL with 17 points of measure, and flats marked with each measurement.Open full size: Size chart
    Page 12 of 14Size chart

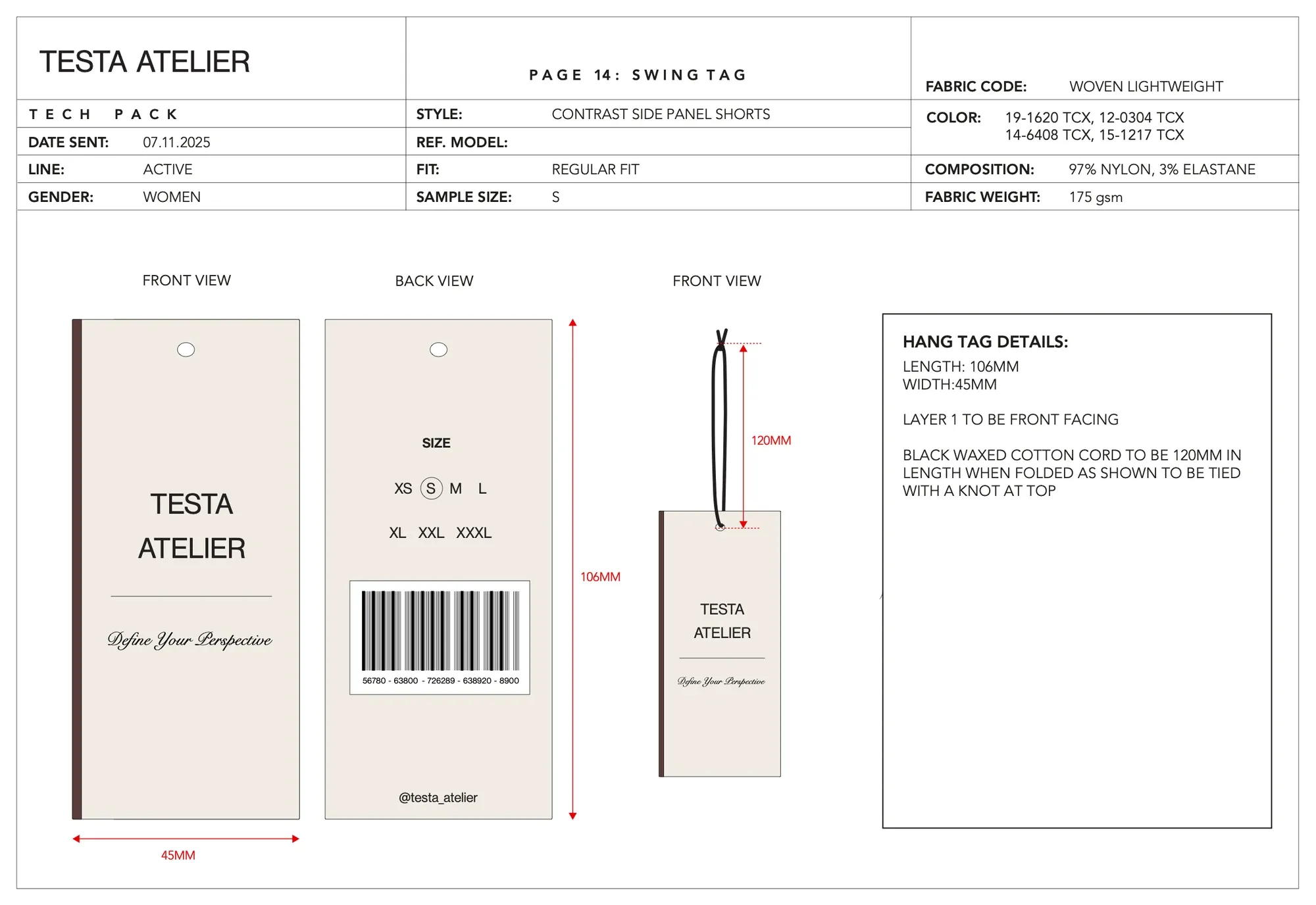

  12. Contrast side panel shorts, swing tag: Testa Atelier swing tag, front and back, with size and barcode panel and cord length.Open full size: Swing tag
    Page 13 of 14Swing tag

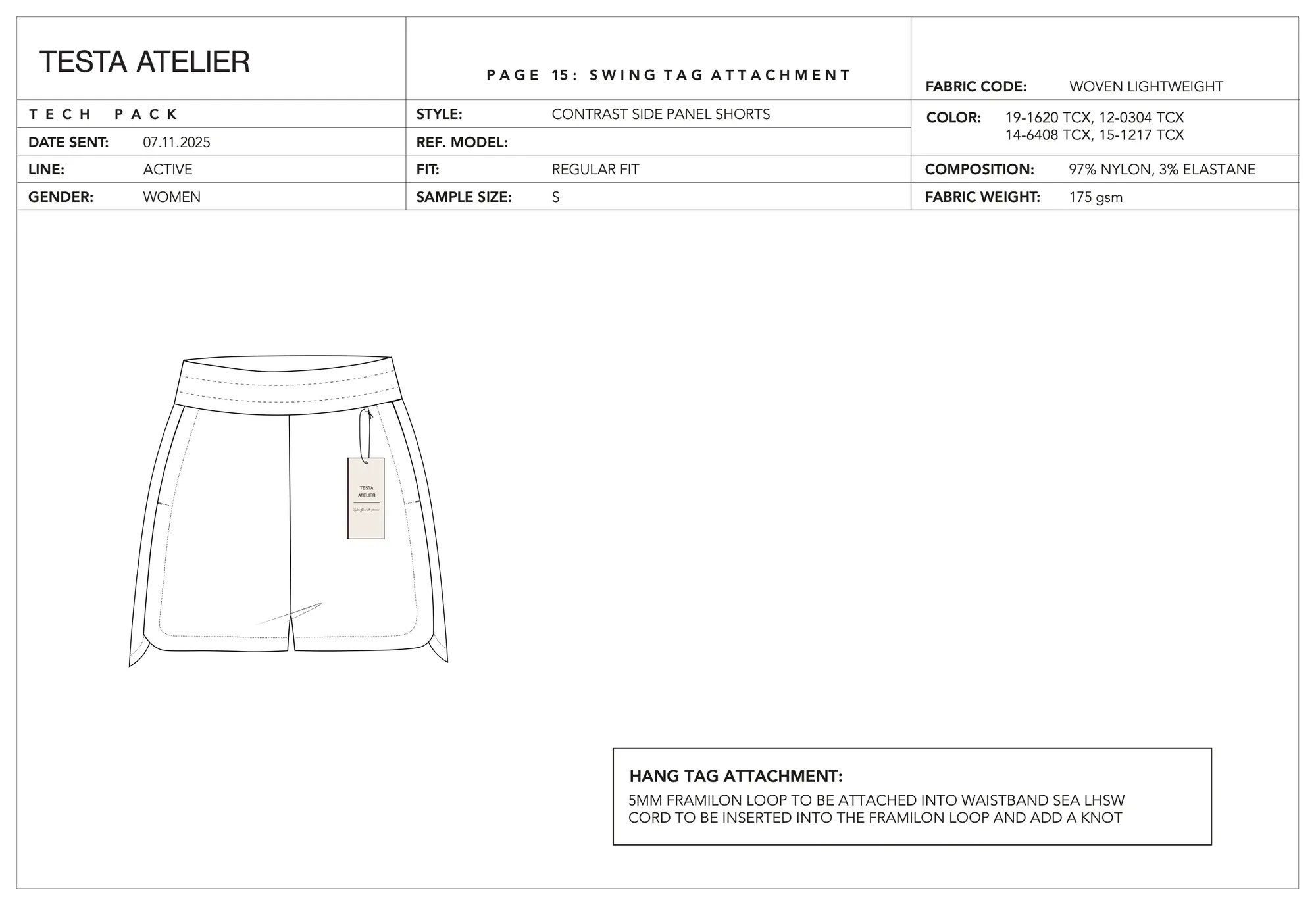

  13. Contrast side panel shorts, swing tag attachment: swing tag attached at the left side waistband seam with a framilon loop and knotted cord.Open full size: Swing tag attachment
    Page 14 of 14Swing tag attachment
